Reliable Quality
*Powerful power, high reliability, large torque reserve coefficient, and good adaptability;
*Four-wheel drive models all adopt full hydraulic steering, which is flexible and maneuverable;
*Advanced chassis manufacturing technology ensures safe and reliable performance; baked-enamel hood, rust-proof and durable.
Efficient Operation
*Short wheelbase, shuttle shift configuration, compact structure, flexible operation, high working efficiency;
*Large-capacity roto-molded fuel tank for long continuous operation time, improving work efficiency;
*Multi-way valve control with power take-off quick connector, which can be connected to external power equipment.
Strong Adaptability
*Stepless adjustment of rear wheel track to meet the operation needs of different agronomic conditions;
*Strong lifting and lowering hydraulic system, equipped with hydraulic output multi-way valve flow control valve, high practicability.
Comfortable Driving
*The whole machine has a pure flat floor and a shock-absorbing seat, providing good driving comfort; suspended clutch and brake make the operation more comfortable.

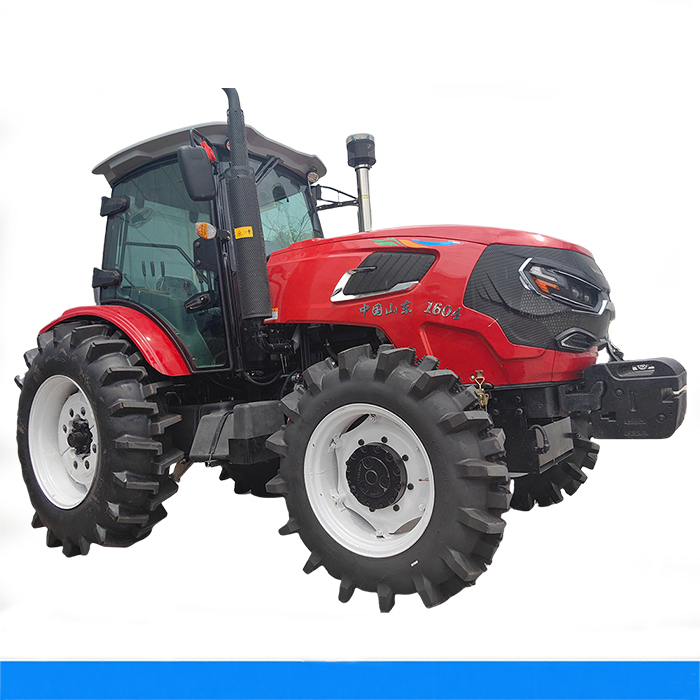

| Model | 1604 |
| ENGINE PERFORMANCE | |
| Type | Laidong |
| Horsepower | 160 |
| Engine structure type | Direct injection,vertical, water-cooled, 4-cycle diesel |
| No.of engine cylinders | 6 |
| Standard power(KW) | 118 |
| Standard speed(r/min) | 2400 |
| TRANSMISSION | |
| Drive type | 4WD |
| No.of Speeds | 16F+8R shuttle gear shift |
| No.of splines of power output shaft | 8 |
| Standard speed of PTO (r/min) | 760/850 |
| Rear axle | TD |
| DIMENSION & WEIGHT WITH STANDARD TIRES | |
| Overall dimensions (L × W× H)(mm) | 4795X2100X2865 |
| Wheelbase (mm) | 2330 |
| Wheel track (Front/Rear) (mm) | 1622/1642 |
| Min ground clearance | 386 |
| Min weight (kg) | 5000 |
| Standard Counterweight (kg) | 400/200 |
| Tire (Front/Rear) | 12.4-24/ 16.9-34 |
