Reliable Quality
*Powerful power, high reliability, large torque reserve coefficient, and good adaptability;
*The hydraulic system adopts a new type of oil filter, which has good filtering effect and is convenient for maintenance.
Efficient Operation
*The tractor has short wheelbase, shuttle shift configuration, compact structure, flexible operation, high working efficiency.
*Large-capacity roto-molded fuel tank allows long continuous operation time, improving work efficiency.
Strong Adaptability
*Equipped with 8F+8R gears and shuttle shift, convenient forward and backward operation.
*Strong lifting and lowering hydraulic system, equipped with hydraulic output multi-way valve flow control valve, which is more convenient to operate.
Comfortable Driving
*The whole machine has a pure flat floor and a shock-absorbing seat, providing good driving comfort.

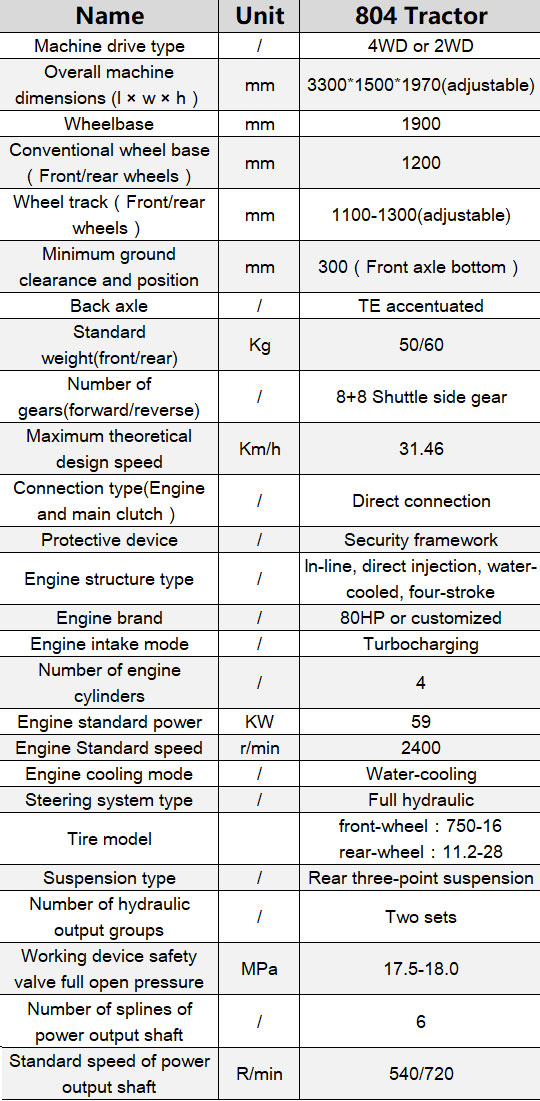

| Model | 804 |
| ENGINE PERFORMANCE | |
| Type | Yunnei/Laidong |
| Horsepower | 80 Hp |
| Engine structure type | Inline,Direct injection, Water-cooled, 4-cycle diesel |
| No.of engine cylinders | 4 |
| Standard power(KW) | 54 |
| Standard speed(r/min) | 2400 |
| TRANSMISSION | |
| Drive type | 4WD |
| No.of Speeds | 8F+8R shuttle gear shift |
| No.of splines of power output shaft | 6 |
| Standard speed of PTO (r/min) | 540/720 |
| Rear axle | TB |
| DIMENSION & WEIGHT WITH STANDARD TIRES | |
| Overall dimensions (L × W× H)(mm) | 4200 X 1760 X 2700 |
| Wheelbase (mm) | 1900 |
| Wheel track (Front/Rear) (mm) | 1100-1300 (adjustable) |
| Min ground clearance | 300 |
| Min weight (kg) | 2800 |
| Standard Counterweight (kg) | 36/40 |
| Tire (Front/Rear) | 8.3-20/ 12.4-28 |
